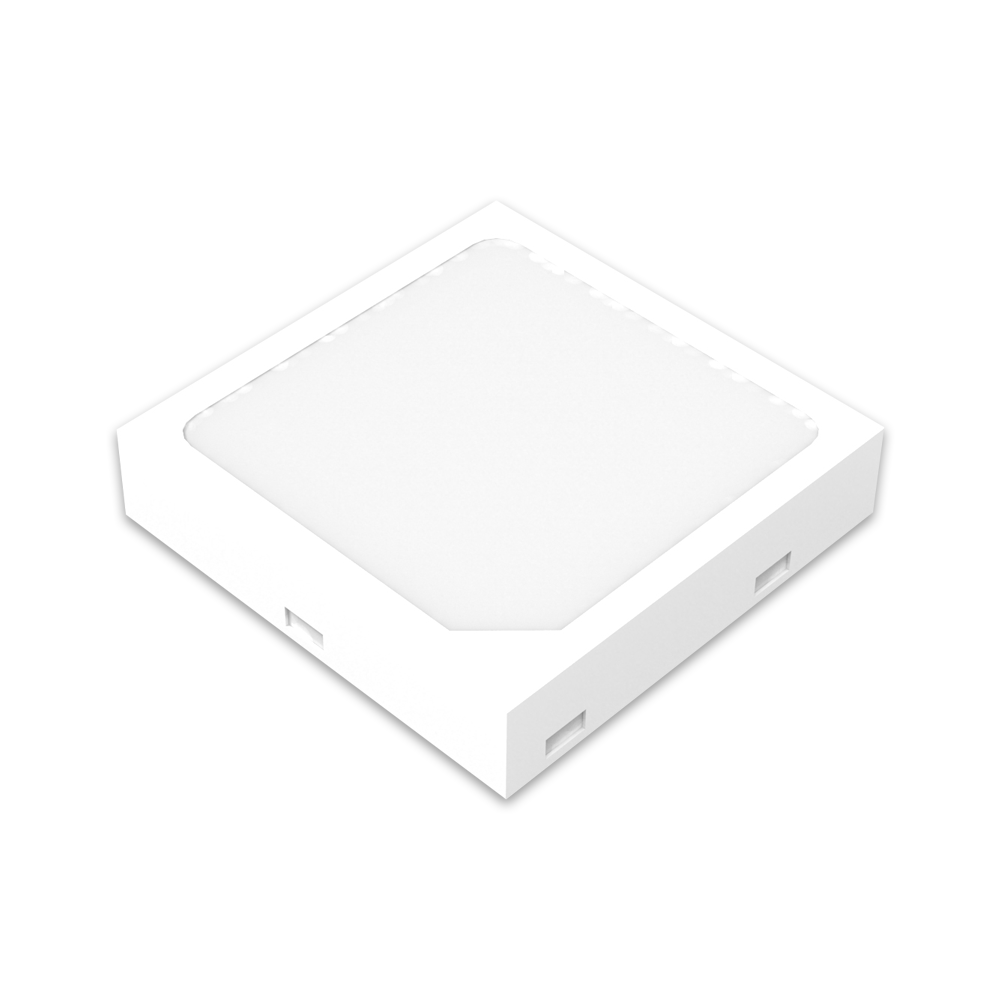

NX2X757G
COLOR SERİSİ
  • Product Code: NE2B757G | NE2G757G | NF2E757GR | NFSY757G | NE2R757G-P6
  • Color: Blue | Green | Bluish Green | Yellow | Red
  • Wattage: 0,5W | 0,5W | 1,5W | 0,5W | 0,2W
  • Forward Voltage: 2,9V | 3,5V | 6,96V | 2,88V | 2,13V
  • Maximum Forward Current: 140mA | 140mA | 200mA | 150mA | 140mA
  • Luminous Flux: 8,7lm | 33lm | 83lm | 30,2lm | 16lm
  • Condition: If: 100mA, Tj:25°C | 100mA, Tj:25°C | 150mA, Tj:25°C | 65mA, Tj:25°C | 100mA, Tj:25°C
Dökümanlar
  • NE2B757G İNDİR
    Part No. NE2B757G
    Size LxWxH (mm) 3×3×0.65
    Chromaticity Coordinate   Blue
    Typ.(x) 0.133
    Typ.(y) 0.075
    Luminous Flux Typ. (lm) 8.7
    VF Typ. (V) 2.9
    Max.(V) 3.3
    Directivity(2θ ½) (degree) 120
    IF (mA) 100
    Thermal resistance(RθJS) (℃/W) 20
    Absolute maximum ratings IF (mA) 140
    IFP (mA) 180
    IR (mA) 85
    PD (mW) 462
    TJ (℃) 120
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 5000 per reel
    Soldering/Mounting Methods   Reflow
    NE2G757G İNDİR
    Part No. NE2G757G
    Size LxWxH (mm) 3×3×0.65
    Chromaticity Coordinate   Green
    Typ.(x) 0.17
    Typ.(y) 0.70
    Luminous Flux Typ. (lm) 33
    VF Typ. (V) 3.5
    Max.(V) 3.9
    Directivity(2θ ½) (degree) 120
    IF (mA) 100
    Thermal resistance(RθJS) (℃/W) 46
    Absolute maximum ratings IF (mA) 140
    IFP (mA) 180
    IR (mA) 85
    PD (mW) 546
    TJ (℃) 120
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 5000 per reel
    Soldering/Mounting Methods   Reflow
    NF2E757GR İNDİR
    Part No. NF2E757GR
    Size LxWxH (mm) 3×3×0.65
    Chromaticity Coordinate   Bluish Green
    Typ.(x) 0.095
    Typ.(y) 0.565
    Luminous Flux Typ. (lm) 83
    VF Typ. (V) 6.96
    Max.(V) 7.3
    Directivity(2θ ½) (degree) 120
    IF (mA) 150
    Thermal resistance(RθJS) (℃/W) 17
    Absolute maximum ratings IF (mA) 200
    IFP (mA) 400
    IR (mA) 85
    PD (W) 1.46
    TJ (℃) 120
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 5000 per reel
    Soldering/Mounting Methods   Reflow
    NFSY757G İNDİR
    Part No. NFSY757G
    Size LxWxH (mm) 3×3×0.65
    Chromaticity Coordinate   Yellow
    Typ.(x) 0.4987
    Typ.(y) 0.4946
    Luminous Flux Typ. (lm) 30.2
    VF Typ. (V) 2.88
    Max.(V) 3.3
    Directivity(2θ ½) (degree) 120
    IF (mA) 65
    Thermal resistance(RθJS) (℃/W) 24
    Absolute maximum ratings IF (mA) 150
    IFP (mA) 200
    IR (mA) 85
    PD (mW) 495
    TJ (℃) 120
    Topr (℃) -40~100
    Tstg (℃) -40~100
    Maximum packing quantity (pcs.) 5000 per reel
    Soldering/Mounting Methods   Reflow
    NE2R757G-P6 İNDİR
    Part No. NE2R757G-P6
    Size LxWxH (mm) 3×3×0.65
    Chromaticity Coordinate   Red
    Typ.(x) 0.695
    Typ.(y) 0.305
    Luminous Flux Typ. (lm) 16
    VF Typ. (V) 2.13
    Max.(V) 2.4
    Directivity(2θ ½) (degree) 120
    IF (mA) 100
    Thermal resistance(RθJS) (℃/W) 14
    Absolute maximum ratings IF (mA) 140
    IFP (mA) 180
    VR (V) 5
    PD (mW) 336
    TJ (℃) 120
    Topr (℃) -40~85
    Tstg (℃) -40~85
    Maximum packing quantity (pcs.) 5000 per reel
    Soldering/Mounting Methods   Reflow
  • NE2B757G Datasheet İNDİR
    NE2G757G Datasheet İNDİR
    NF2E757GR Datasheet İNDİR
    NFSY757G Datasheet İNDİR
    NE2R757G-P6 Datasheet İNDİR
  • IEC-NE2B757G İNDİR
    IEC-NE2G757G İNDİR
    IEC-NF2E757GR İNDİR
    IEC-NFSY757G İNDİR
  • UL8750 Qualified-LEDs İNDİR
