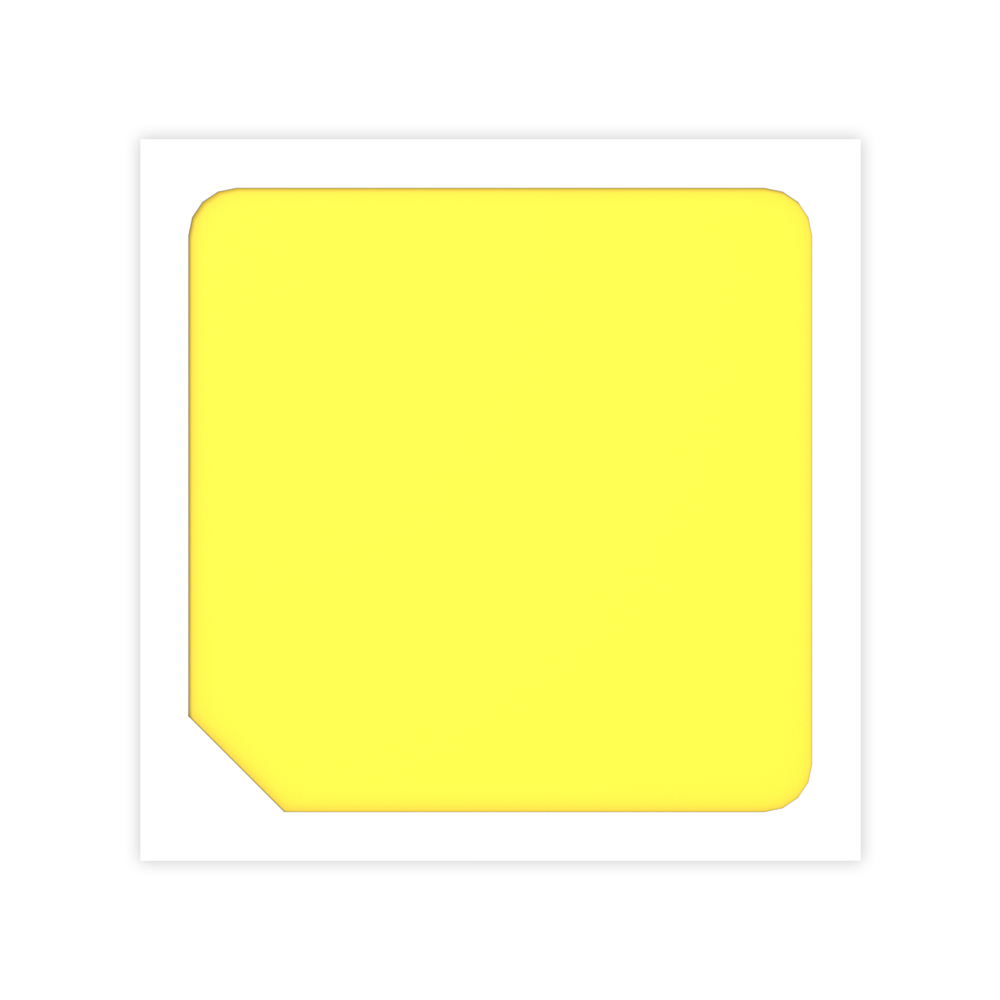

NFSW757H-V1
MID POWER
  • Wattage: 0.18W
  • Forward Voltage: 2.84V
  • Maximum Forward Current: 180mA
  • Luminous Flux: 37.9 Lm
  • Condition: 5000K, Ra≧80, R9＞0, If:65 mA, Tj:25°C
Teklif Al
Dökümanlar
  • NFSW757H-V1 İNDİR
    Part No.
    Size
    L×W×H
    (mm)
    Color
    IF
    (mA)
    VF
    Typ(V)
    CRI
    Luminous
    Flux
    Typ(lm)
    Radiant
    Flux
    Typ(mW)
    Luminous
    Intensity
    Typ(cd)
    Directivity
    (degree)
    Ra
    Min
    R9
    Min

    NFSW757H-V1

    		 3×3×0.8 White 65 2.84 70   39.5     120
    White 65 2.84 80 >0 37.9     120
    White 65 2.84 90 50 32.6     120
    Warm White 65 2.84 70   37.7     120
    Warm White 65 2.84 80 >0 37.6     120
    Warm White 65 2.84 90 50 29.8     120
  • NFSW757HT-V1-Datasheet İNDİR
