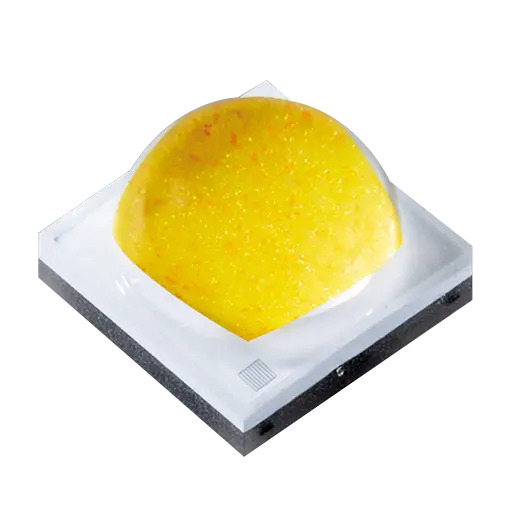

NVSW519A-V1
19 (3535)
  • Wattage: 4.11W
  • Forward Voltage: 2.94V
  • Maximum Forward Current: 2200mA
  • Luminous Flux: 730lm
  • Condition: 5000K, Ra≥70, | If: 1400mA, Tj:25°C
Teklif Al
Dökümanlar
  • NVSW519A-V1 İNDİR
    Part No.
    Size
    L×W×H
    (mm)
    Color
    IF
    (mA)
    VF
    Typ(V)
    CRI
    Luminous
    Flux
    Typ(lm)
    Radiant
    Flux
    Typ(mW)
    Luminous
    Intensity
    Typ(cd)
    Directivity
    (degree)
    Ra
    Min
    R9
    Min

    NVSW519A

    		 3.5×3.5×2.35 White 1400 3.03 70   730     130
    White 1400 3.03 80 0 655     130
    White 1400 3.03 90 80 507     130
    Warm White 1400 3.03 70   720     130
    Warm White 1400 3.03 80 0 624     130
    Warm White 1400 3.03 90 80 428     130
  • NVSW519A-V1 Datasheet İNDİR
